1000W Remote Laser Cutting Machine

Name: 1000W Remote Laser Cutting Machine
Brand: Goodly | Remote laser cutting tool
SKU: 1000W
Price: 44900.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.1000W

Working distance: ≥500m;
Continuous working time: ≥90mins
Laser power output: 1000w, CW laser, adjustable;
Laser output wavelength: 1080nm±5nm;
Cooling: air-cooled
Laser beam size at 300m away: ≤12mm；
Electronic telescopic sight: 30 times optical zoom, 10 times electronic zoom;
Power supply mode: portable rechargeable battery, or external power supply and generator;
Aiming: automatic aiming, aiming time ≤ 30s;
Alarming: the laser obstacle alarms and stops working when anybody enter the laser firing area;
Set up time: ≤3mins;

$44,900/a set

Get A Quote

Add to Quote List View Quote List

DESCRIPTION

Our Remote Laser Cutting Machine (Tool) can remove objects such as tree obstructions, bird nest, wasp nest, kites, balloons, agriculture film and plastic bags by laser cutting in the power grids and landscaping (removing the roadside tree obstructions).
It has the following characteristics:
1. Safe. The laser can remove hanging objects like kites, films, advertising banners, and large tree obstacles around high-voltage lines remotely. The operators no need to climb high;
2. Efficient. With the aid of the visual targeting system, it can quickly target and remove the floating objects within 300m.
3. Reliable. No need for power outages, no need to climb high, and it can remove the obstacles on the ground with live electricity, completing uninterrupted power supply and zero-risk emergency repairs.
Typical applications: Cleaning of floating objects on transmission lines in the power industry and other industries that require remote clearance.

Main usage scenarios
The power grid is erected in the air by bare metal wires through towers.
The kites, kite wires, plastic sheets, advertising cloth, etc. are easy to blow onto the bare metal wires. Faults such as short circuit, single phase grounding, so it is necessary to clean up the foreign objects on the grid. This obstacle remover uses laser beams to irradiate the foreign matter to burn and gasify the foreign matter, so that the foreign matter is separated from the power grid. The ability to perform remote clearing simplifies the clearing process and improves worker safety. At the same time, this product can display the image of the obstacle removal process in real time on the display screen of the handheld control tablet, which is convenient for the operator to observe the burning or gasification of the obstacle removal object at the irradiation position of the laser beam, and reasonably grasp the laser irradiation time.

Main parts

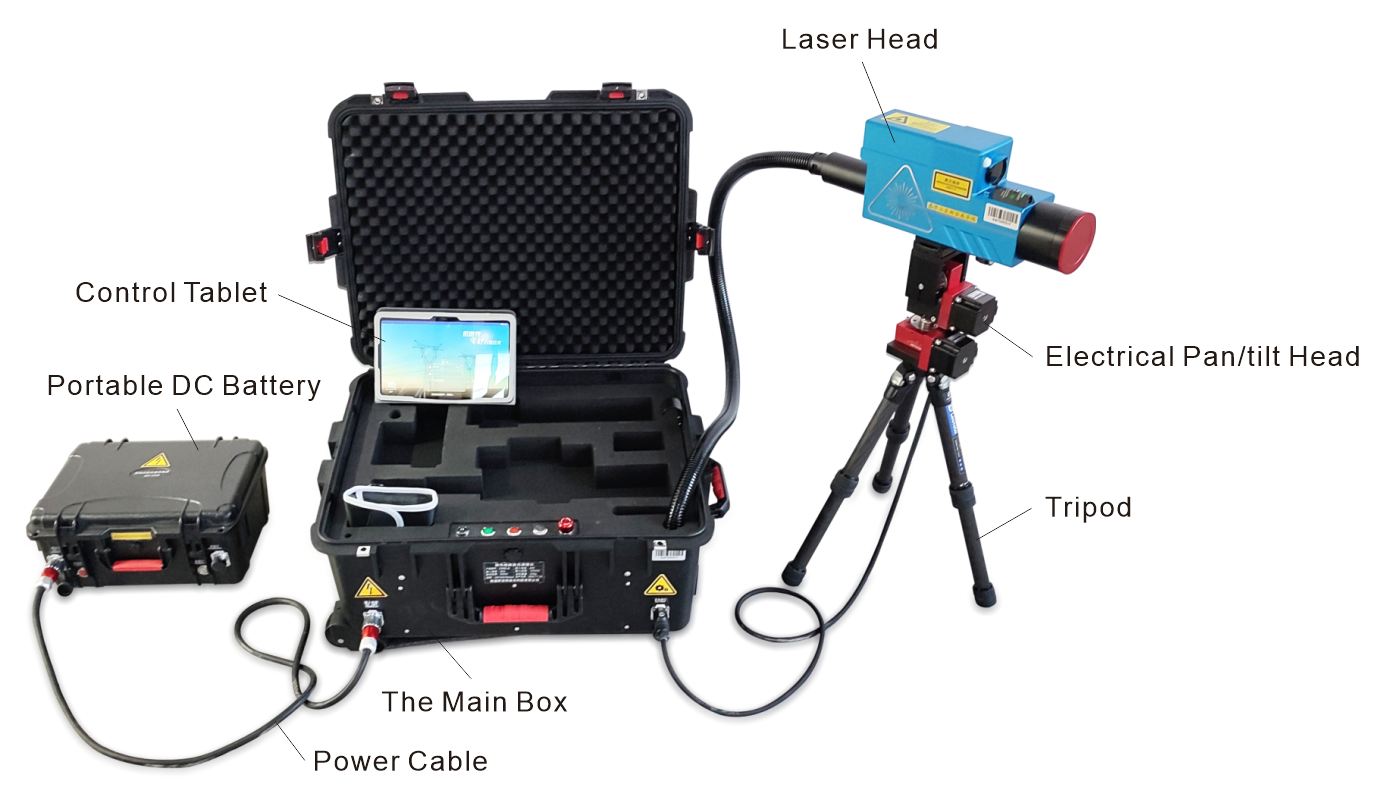

The F1000S Laser Obstacle Remover are mainly integrated with: the main box, laser head, battery, electrical pan/tilt head, tripod, control tablet, power cables.

Application Area:

1). The product is suitable for use in various environment such as the power grid, railway, oil field, and military force, as well as in harsh environment such as forest, mountainou area, and terrace. With high laser power, it is suitable for clearing tree obstacle and obstacle that are difficult to clean.
2). It is suitable for the troops to remotely cut and destroy scrapped land mines , scrapped artillery shells, scrapped detonators for the army.
